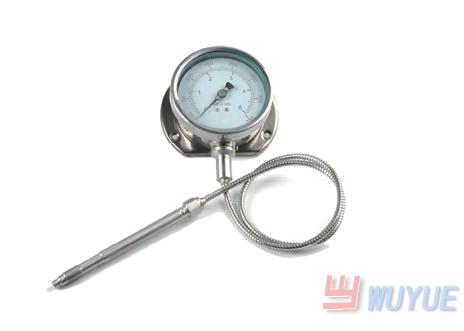

PT160 high temperature melt pressure gauge

PT160 high temperature pressure gauge

Wuyue's PT160 series high temperature pressure gauges are the perfect substitutes of like product from BARMAG ,DYNISCO,GEFRAN,RKC,applied in plastics,rubber,fiber extruder to measure and control the pressure of the machines, metal hose for isolation, good temperature resistance, real-time display the pressure value.

 PARAMETER:

• Pressure ranges: 0~5MPa~200MPa
• Accuracy:1%FS;1.5%FS
• Temperature resistance of the diaphragm:500°C
• Standard threading: 1/2-20UNF,M12*1.5,M14x1.5,M18*1.5 M22*1.5,G3/4 ;other versions on request
• Housing material:316stainless steel
• CE Approved  high temperature pressure gauge
