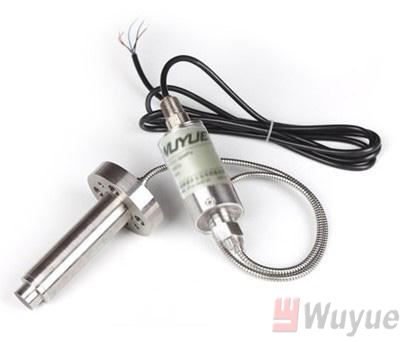

PT2616B high temperature melt pressure transmitter

PT2616B high temperature melt pressure transmitter

Wuyue's PT2616B series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. The performance indicators reach world class level. Ideal substitute of expensive other world class like product.

Feature: High accuracy, Sealed with stainless steel, Easy installment, Good stability. Calibration on both zero and span, Amplified signal can be directly input in PLC.High performance of anti-interference.

PARAMETER:

• Pressure ranges:0-5 to 0-200MPa
• Accuracy: < ±0.5% FS
• Signal output:0~5V; 0~10V; 4-20mA
• Working voltage:24VDC (12~36)VDC
• Electrical  Connector: 1/2-14NPT cable
• Process connection: flange, other type on request
• Temperature resistance of diaphragm:400°C
• Overload pressure:1.5*FS
• Thermocouple type for PT131B: J, K, E thermocouples or RTD.
• CE Approved high temperature melt pressure transmitter
