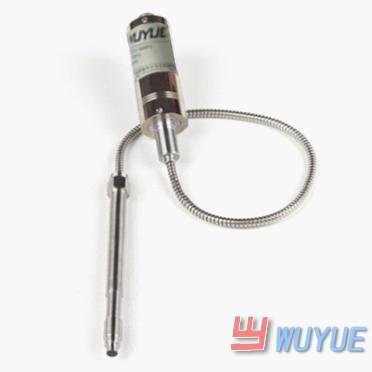

PT1366melt pressure transducer/sensor






PT1366 high temperature melts pressure transducer/sensor

Wuyue's PT1366 series high temperature melt pressure transducers are our patented product with new characteristic, such as: rigid rod, metal hose for isolation, diaphragm spacer assembly, super stability and accuracy. Products are applied to measure and control the pressure as well as temperature of those high temperature fluid medium of extruders for such as fiber, polyester, rubber, plastics.

Features: Anticorrosion and wear resistance coating extends its service life by more than 5 times

PARAMETER:

  • Pressure ranges: any scale from 0-200MPa
  • Accuracy:< ±0.5% FS; < ±1.0% FS
  • Signal output:4--20mV/V,0--5--10V
  • Working voltage:10VDC  high temperature melt pressure transdcuer
  • Calibration:80%FSO+1%
  • Maximum temperature resistance of diaphragm:350°C
  • Electrical Connector: special 7pin connector
  • Standard threading: 1/2-20UNF, M14x1.5, M22*1.5,M18*1.5 ;other versions on request
  • Wuyue's melt pressure transducer got CE Approved
